Chapter 7: Output Specification Techniques

Controlling Format, Structure, and Quality of AI Outputs

---

Learning Objectives

After completing this chapter, you will be able to:

1. Specify output formats precisely
2. Request structured data outputs (JSON, XML, tables)
3. Control output length and detail level
4. Define quality constraints
5. Validate outputs against specifications

---

Why Output Specification Matters

The Output Problem

Without specification, AI outputs are:

• Unpredictable in format
• Inconsistent in length
• Variable in structure
• Difficult to process programmatically

The Specification Solution

With clear specifications:

• Outputs are immediately usable
• Processing can be automated
• Consistency is maintained
• Quality is verifiable

Impact Comparison

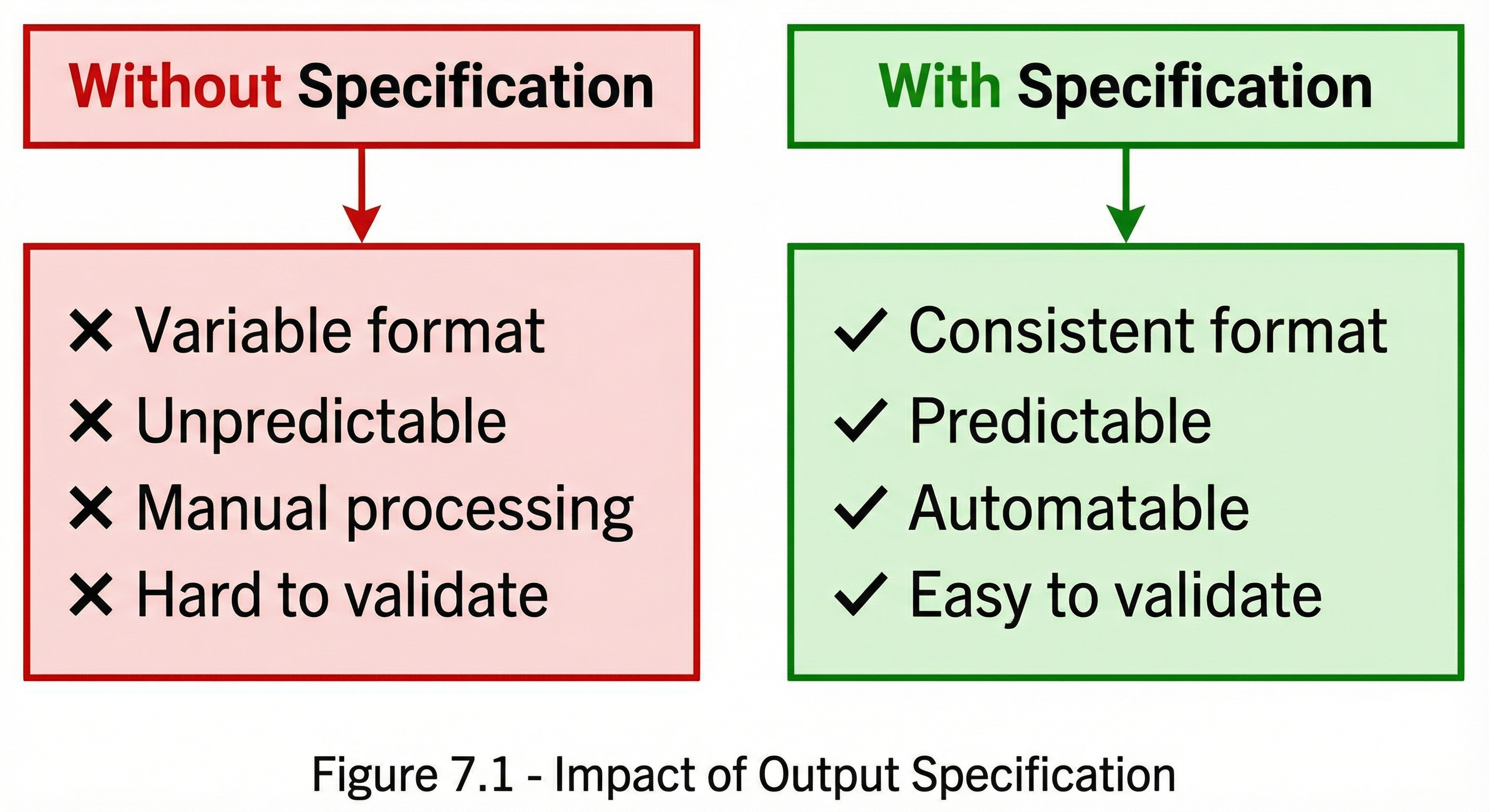

Figure 7.1: The transformation from unpredictable outputs to consistent, automatable results through proper specification.

---

Format Specification Methods

Method 1: Format Naming

Specify a well-known format by name:

Format Name	Description	Example Use
JSON	Structured data	API responses
Markdown	Rich text	Documentation
CSV	Tabular data	Spreadsheets
XML	Hierarchical data	Configuration
YAML	Configuration	DevOps
Plain text	Simple output	Logs

Example:

Return your response as valid JSON.

Method 2: Template Specification

Provide a template to follow:

Format your response using this template:

**Title:** [Title here]
**Summary:** [2-3 sentences]
**Key Points:**
- [Point 1]
- [Point 2]
- [Point 3]
**Recommendation:** [1 sentence]

Method 3: Schema Definition

Define the exact structure:

Return JSON matching this schema:

{
  "analysis": {
    "summary": "string (50-100 words)",
    "confidence": "number (0-1)",
    "findings": [
      {
        "title": "string",
        "description": "string",
        "severity": "low|medium|high"
      }
    ],
    "recommendation": "string"
  }
}

Method 4: Example-Based Specification

Show an example of desired output:

Format your response like this example:

PRODUCT: Widget Pro
RATING: 4.5/5
PROS:
• Excellent build quality
• Easy to use
• Great value

CONS:
• Limited color options
• No warranty extension

VERDICT: Recommended for most users

---

Structured Data Formats

JSON Output

When to Use: APIs, data processing, programmatic use

Specification Pattern:

Return valid JSON with this structure:
{
  "status": "success|error",
  "data": {
    "items": [],
    "count": number
  },
  "metadata": {
    "generated_at": "ISO 8601 timestamp",
    "version": "1.0"
  }
}

Ensure:
- All strings are properly escaped
- No trailing commas
- Valid JSON that parses without errors

Output Example:

{
  "status": "success",
  "data": {
    "items": ["item1", "item2"],
    "count": 2
  },
  "metadata": {
    "generated_at": "2024-01-15T10:30:00Z",
    "version": "1.0"
  }
}

Markdown Tables

When to Use: Documentation, comparisons, structured display

Specification Pattern:

Present the comparison as a Markdown table with columns:
| Feature | Product A | Product B | Winner |

Include at least 5 feature comparisons.

Output Example:

| Feature | Product A | Product B | Winner |
|:--------|:----------|:----------|:-------|
| Price | $99 | $149 | Product A |
| Performance | Fast | Faster | Product B |
| Support | Email only | 24/7 | Product B |
| Storage | 50 GB | 100 GB | Product B |
| Ease of Use | Beginner-friendly | Advanced | Product A |

Structured Lists

When to Use: Action items, checklists, step-by-step processes

Specification Pattern:

Return as a numbered list with sub-items:

1. [Main point]
   a. [Detail]
   b. [Detail]
2. [Main point]
   a. [Detail]

XML Output

When to Use: Configuration, data interchange, legacy systems

Specification Pattern:

Return valid XML with this structure:

<?xml version="1.0" encoding="UTF-8"?>
<response>
  <status>string</status>
  <items>
    <item>
      <name>string</name>
      <value>string</value>
    </item>
  </items>
</response>

---

Length and Detail Control

Length Specification

Specification	Example
Word count	“Write 200-300 words”
Sentence count	“Respond in 3-5 sentences”
Paragraph count	“Provide a 2-paragraph summary”
Page length	“One page maximum (~500 words)”
Character limit	“Maximum 280 characters (tweet length)”

Detail Level Specification

Detail Levels:

HIGH LEVEL: "Provide an executive summary suitable for a
30-second read. Key points only, no technical details."

MODERATE: "Explain with enough detail for a general audience
to understand. Include relevant examples but skip edge cases."

DETAILED: "Provide comprehensive coverage including edge cases,
exceptions, and technical nuances. Assume expert audience."

Length Control Examples

Short Response:

Summarize this document in exactly 3 bullet points,
each no longer than 15 words.

Constrained Response:

Explain quantum computing in:
- Exactly 100 words
- No technical jargon
- One analogy

Flexible Response:

Provide an analysis of appropriate length:
- Brief for simple findings
- Detailed for complex issues
- Target: 200-500 words based on complexity

---

Structure and Organization

Section-Based Structure

Organize your response into these sections:

## Overview
[1 paragraph introduction]

## Analysis
[Main content, 2-3 paragraphs]

## Findings
[Bulleted list of 3-5 findings]

## Recommendations
[Numbered list of actions]

## Conclusion
[1 paragraph wrap-up]

Hierarchical Structure

Structure the information hierarchically:

1. Main Topic
   1.1 Subtopic A
       1.1.1 Detail
       1.1.2 Detail
   1.2 Subtopic B
2. Main Topic
   2.1 Subtopic

Parallel Structure

For each item, provide:
- Name
- Description (1-2 sentences)
- Pros (2-3 bullet points)
- Cons (2-3 bullet points)
- Rating (1-5 stars)

Maintain this exact structure for all items.

---

Quality Constraints

Content Quality

Quality requirements:
- All claims must be factually accurate
- Include sources for statistics
- Avoid speculation—state uncertainties clearly
- No marketing language or hyperbole

Consistency Constraints

Maintain consistency:
- Use American English throughout
- Numbers under 10 as words, 10+ as numerals
- Dates in MM/DD/YYYY format
- Currency with $ symbol and two decimals

Completeness Constraints

Ensure completeness:
- Address all points raised in the question
- Include both pros and cons
- Consider at least 3 alternatives
- Note any important caveats

Exclusion Constraints

Do NOT include:
- Personal opinions
- Information after knowledge cutoff
- Code in languages other than Python
- References to previous conversations

---

Output Validation

Self-Validation Instructions

After generating your response:
1. Verify JSON is valid (parseable)
2. Confirm all required fields are present
3. Check that word count is within range
4. Ensure no placeholder text remains

Validation Checklist Pattern

Before finalizing, verify:
- [ ] All sections from the template are present
- [ ] Word count is 200-300 words
- [ ] At least 3 examples are included
- [ ] No technical jargon used
- [ ] Ends with a clear call-to-action

Error Handling Instructions

If you cannot fulfill a requirement:
1. Complete what you can
2. Note the limitation explicitly
3. Suggest an alternative approach
4. Mark incomplete sections with [TODO]

---

Advanced Output Patterns

Multiple Output Formats

Provide the response in two formats:

FORMAT 1 - Executive Summary:
[3-5 bullet points for quick reading]

FORMAT 2 - Detailed Analysis:
[Full prose explanation with supporting details]

Conditional Formatting

Format based on result:

If findings are CRITICAL:
- Use bold headers
- List immediately at top
- Include remediation steps

If findings are INFORMATIONAL:
- Include in appendix
- Brief mention only

Progressive Detail

Structure with progressive detail:

TL;DR: [One sentence summary]

Key Points: [3-5 bullets]

Full Analysis: [Detailed explanation]

Technical Appendix: [Supporting data and details]

---

Format Specification Templates

Template: Report Output

## Output Format: Report

### Structure
1. Executive Summary (100 words max)
2. Background (1 paragraph)
3. Methodology (if applicable)
4. Findings (bulleted list)
5. Analysis (2-3 paragraphs)
6. Recommendations (numbered list)
7. Conclusion (1 paragraph)

### Style
- Professional tone
- Third person
- Past tense for findings
- Present tense for recommendations

Template: API Response

## Output Format: API Response

Return valid JSON:
```json
{
  "success": boolean,
  "data": {
    // Primary response content
  },
  "errors": [
    // Array of error objects if success is false
  ],
  "meta": {
    "request_id": "string",
    "processing_time_ms": number
  }
}

Requirements:

• Must parse as valid JSON
• No comments in output
• Null for missing optional fields ```

Template: Comparison Table

## Output Format: Comparison

| Criteria | Option A | Option B | Option C |
|:---------|:---------|:---------|:---------|
| [Criterion 1] | [Value] | [Value] | [Value] |
| [Criterion 2] | [Value] | [Value] | [Value] |
| ... | ... | ... | ... |

**Winner:** [Option] — [1-sentence justification]

Include at least 5 criteria rows.
Use checkmarks (✓) and X marks (✗) where applicable.

---

Common Output Mistakes

Mistake 1: Format Ambiguity

❌ AMBIGUOUS: "Give me a list"
(Bulleted? Numbered? Comma-separated?)

✅ SPECIFIC: "Provide a numbered list with exactly 5 items,
each item being a single sentence."

Mistake 2: Missing Structure

❌ UNSTRUCTURED: "Tell me about the pros and cons"
(Will be a prose blob)

✅ STRUCTURED: "List pros and cons in this format:
**Pros:**
• [Pro 1]
• [Pro 2]

**Cons:**
• [Con 1]
• [Con 2]"

Mistake 3: Conflicting Specifications

❌ CONFLICTING: "Be comprehensive. Keep it under 50 words."

✅ RESOLVED: "Provide the most essential information only,
in exactly 50 words."

---

Key Takeaways

• Output specification transforms unpredictable AI responses into usable outputs
• Multiple methods exist: format naming, templates, schemas, examples
• Structured formats (JSON, tables, XML) enable automated processing
• Length and detail can be precisely controlled
• Quality constraints ensure content meets standards
• Validation instructions help catch errors before delivery

---

Summary

Output specification is the final control point in prompt engineering. By explicitly defining format, structure, length, and quality requirements, you ensure AI outputs are immediately usable rather than requiring manual reformatting. The techniques in this chapter—from simple format naming to complex schema definitions—give you complete control over how AI delivers its responses.

---

Review Questions

1. What are four methods for specifying output format?
2. When would you choose JSON over Markdown tables?
3. How can you specify both minimum and maximum length?
4. What are three types of quality constraints?
5. How do self-validation instructions improve output quality?

---

Practical Exercise

Exercise 7.1: Format Specification

Write output specifications for:

1. A product comparison (3 products, 5 criteria)
2. An API error response
3. A weekly status report

Include format, structure, length, and quality requirements for each.

Exercise 7.2: JSON Schema Design

Design a JSON schema for a “book recommendation” response that includes:

• Book title and author
• Genre tags (array)
• Summary (50-100 words)
• Rating (1-5)
• Similar books (array of titles)
• Confidence score (0-1)

---
